200V 10A Regulated Switching DC Power Supply HY20010EX Over Voltage Over Current Protection 110V AC

$1,200.00 $699.95

Manufacturer: Volteq

Stock Level: 19

Product Information


VOLTEQ HY20010EX is a high current, high voltage regulated switching DC power supply,  with built-in over-voltage and over-current protection, ideal for industrial and scientific applications including electrophoresis, R&D, manufacturing and product testing, DC motors, anodizing and plating applications. HY20010EX has the maximum DC power of 2000W. This high quality regulated power supply can be continuously adjustable at 0-200V DC and 0-10A. The unit comes with 2 LED displays, providing accurate and clearly visible readout for the voltage and current value. Due to the requirement for high current, this unit  comes with NEMA plug and works off  110-120V AC outlet, but need circuit breaker and wiring to be rated for 23A or more. Retails well over $1200.

Got a question? Call us at 408-622-9851.


Features & Specifications:


  • Two level of control for both current and voltage outputs: coarse and fine for ease of use
  • Outputs: 0-200 V and 0-10 A
  •  Protection: over-voltage and over-current protection
  • Input voltage: 110-120V AC
  • Voltage Stabilization: <=0.2%
  •  Current Stabilization: <=0.5%
  • Load Regulation: <=0.3%
  • Ripple noise: CV <= 1%
  • LCD reading accuracy: +/-1% +/-1 digit
  • Environment: 0-40C, relative humidity < 90%
  • Size: 12" x 10" x 6"
  • Weight: 16 lbs
  • Warranty: 1 year

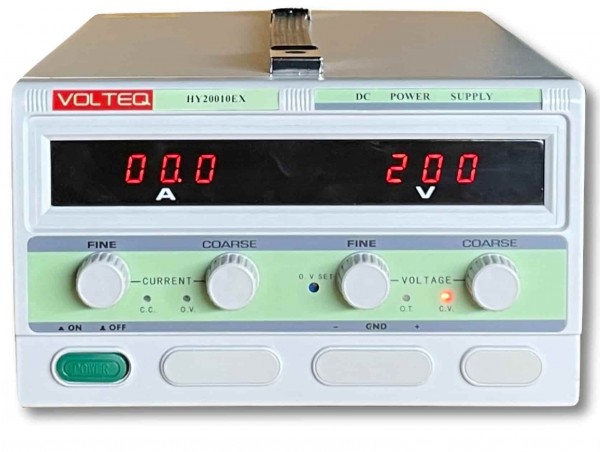

 Switching Power Supply HY20010EX
 Switching Power Supply HY20010EX
 Switching Power Supply HY20010EX
 Switching Power Supply HY20010EX

Product Code: HY20010EX_110V
