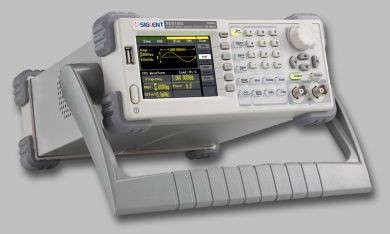

Siglent SDG1050 50MHz Function / Arbitrary Waveform Generator

$1,000.00 $479.95

Stock Level: 4

Product Information


  • Advanced DDS technology, 2 analog channels output, 50 MHz maximum output frequency
  • 125 MSa/s of sample rate, 14 bits of vertical resolution, 16k points of memory depth
  • Intuitive user interface with 3.5" color LCD display
  • DDS technology: Output signals become more accurate and stable with lower distortion
  • 5 standard waveforms: Sine, Square, Ramp, Pulse, Noise
  • Arbitray waveform defined by user
  • Versatile modulation and variety of waveforms: AM, FM, PM, ASK, FSK, Sweep, Burst, PWM, and DSB-AM
  • USB Host, to support USB disk storage
  • Versatile input and output: External modulation source, External clock reference (10 MHz), External trigger input, waveforms output, synchronous signal output
  • Support seamless connection  with Siglent digital oscilloscopes, which allows direct read and rebuild of the stored waveform in the oscilloscopes
  • Support USB storage device
  • High accuracy and wide band width frequency counter range up to 200 MHz
  • 3 year warranty

Product Code: SDG1050
