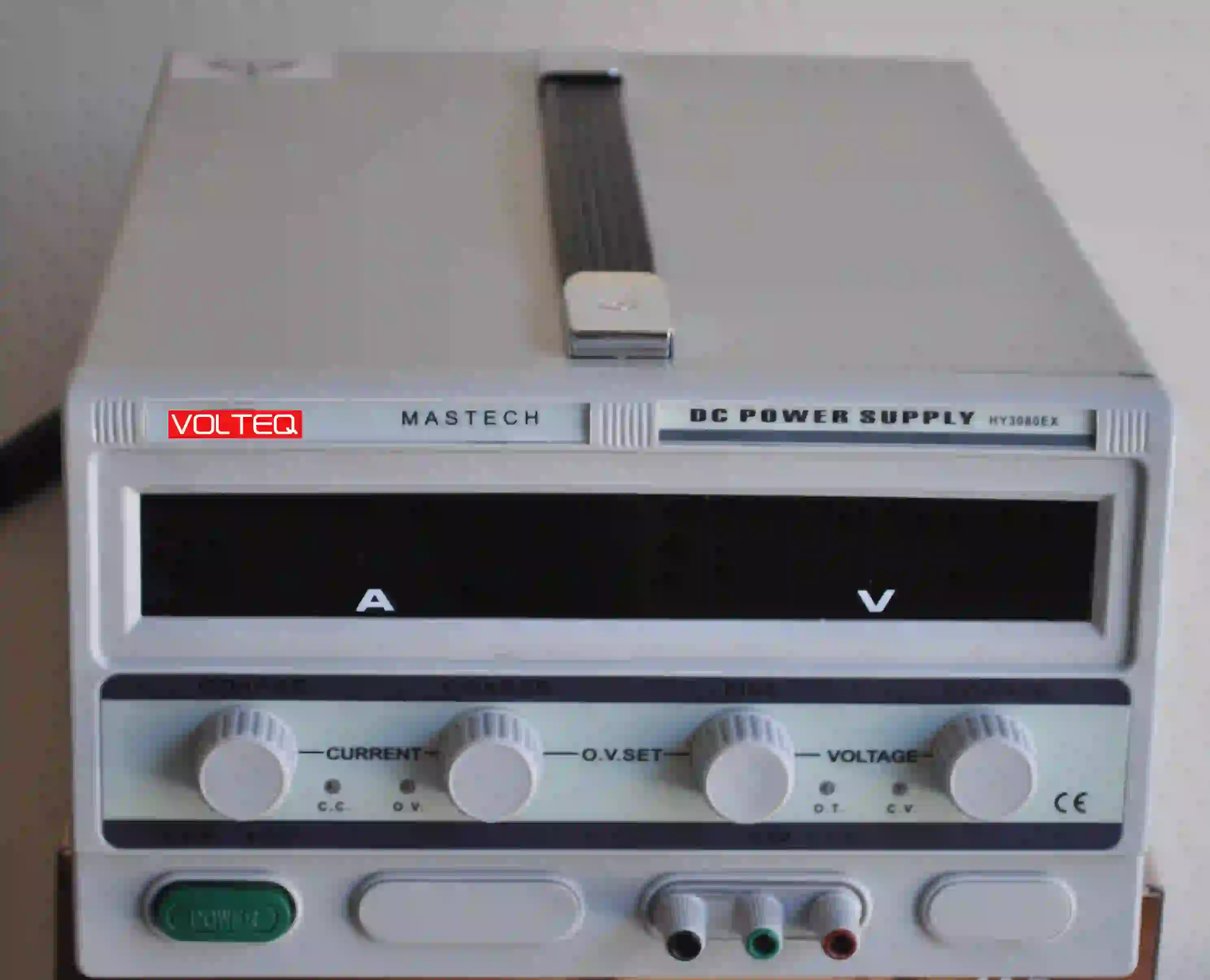

Variable DC Power Supply HY3080EX 30V 80A 110V Input

$1,300.00 $874.95

(Bulk discounts available)

Manufacturer: Volteq

Stock Level: 17

Product Information

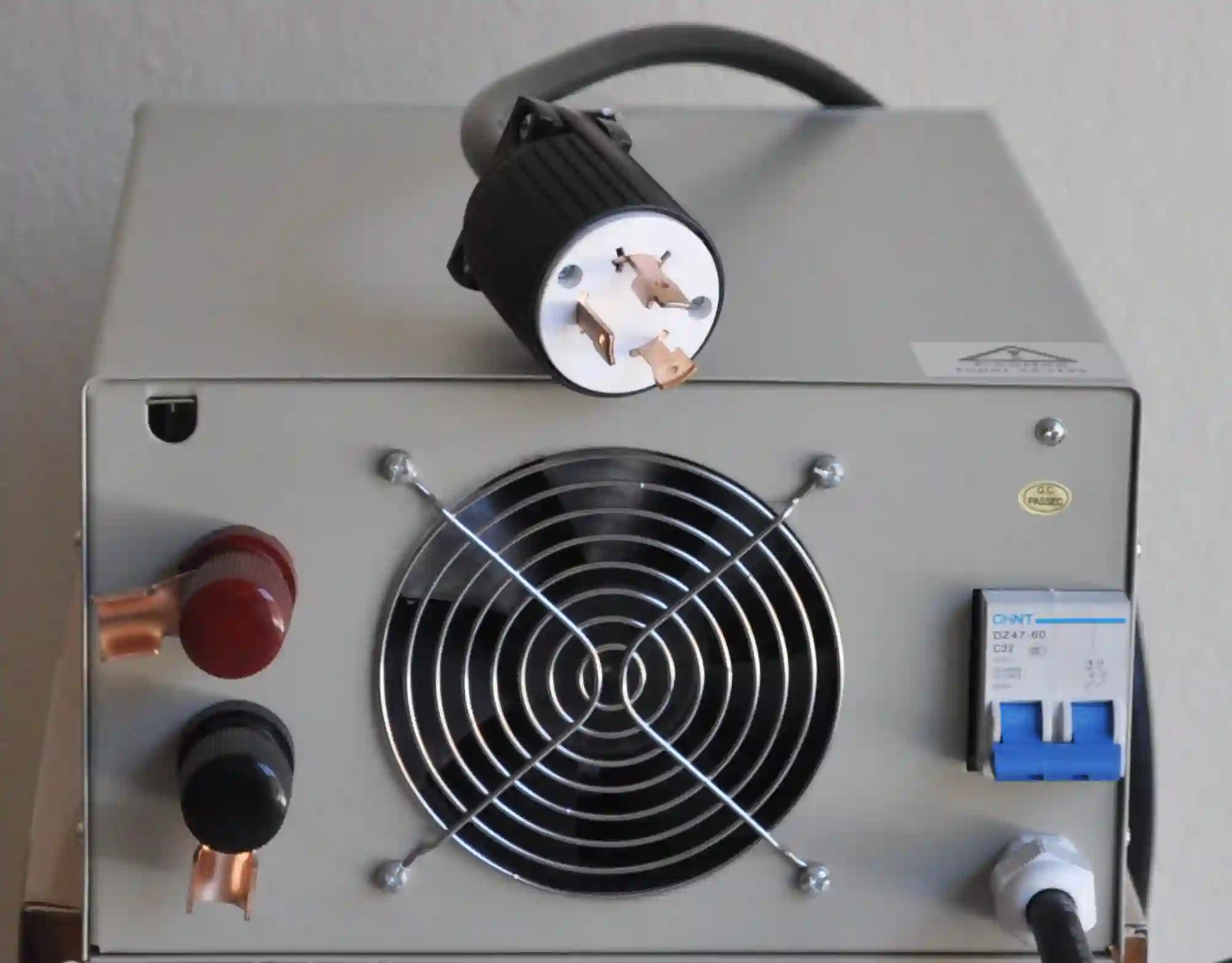

VOLTEQ HY3080EX is a high current, high voltage regulated switching DC power supply with built-in over-voltage and over-current protection, ideal for battery charging, DC motors, anodizing and plating applications. HY3080EX is one of the most powerful DC power supply we carry, with the maximum DC power of 2400W. This high quality regulated power supply can be continuously adjustable at 0-30V DC and 0-80A. The unit comes with 2 LED displays, providing accurate and clearly visible readout for the voltage and current value. This unit works with 110V input, and comes with a NEMA plug. At maximum output (30V and 80A) the unit will draw 27A on the AC line, so if you plan to use this unit for maximum output, you need to ensure AC line with current ratings of 27A or more. We also have this same unit with 220-240V input. Retails well over $1100.

Got a question? Call us at 408-622-9851.


Features & Specifications:

  • Two level of control for both current and voltage outputs: coarse and fine for ease of use
  • Outputs: 0-30 V and 0-80 A
  •  Protection: over-voltage and over-current protection
  • Input voltage: 110V - 120V AC
  • Voltage Stabilization: <=0.2%
  •  Current Stabilization: <=0.5%
  • Load Regulation: <=0.3%
  • Ripple noise: CV <= 1%
  • LCD reading accuracy: +/-1% +/-1 digit
  • Environment: 0-40C, relative humidity < 90%
  • Size: 12" x 10" x 6"
  • Weight: 20 lbs
  • Warranty: 1 year
 Switching Power Supply HY3080EX
 Switching Power Supply HY3080EX

Product Code: HY3080EX_110V

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


Quantity Price per unit
1+ $874.95

Customer Reviews

This product hasn't been reviewed yet. Write a review
